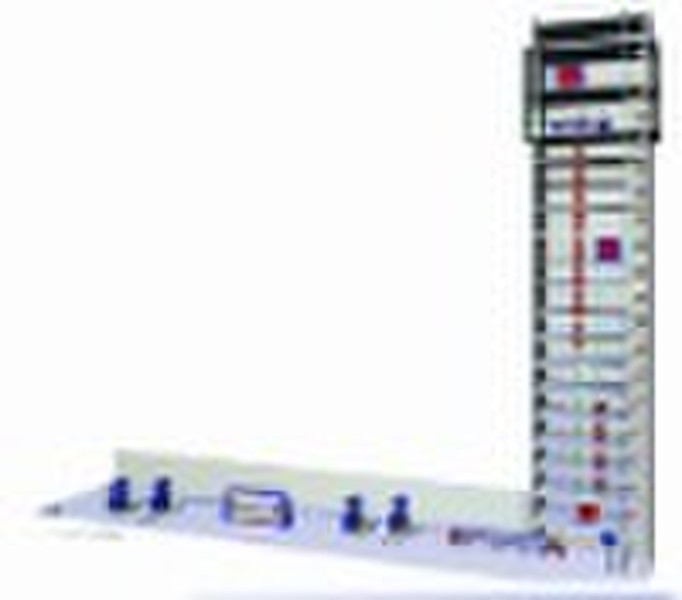

The 500KV Upright VCV Line

The products is controlled by ISO9000 quality system.(We selt the whole cable production line ,we sell single machine as well) 500KV Upright VCV Line 1.Equipment arrangement upright, rotating, vertically arranging, slew winding the line. 2.Overcome cable stress, including heat release equipments. 3.Specially designed triple-layer co-extrusion crosshead: adopts multi-channel structure with excellent advantage: same circle pressure fall in the length directionsame material flow velocity in circle direction. 4.Specially designed extrusion: stable property of joint speed raising extrusion, accurate temperature control system. 5.Electronic weighting tension control. Parameter: Voltage Class: XLPE 35 500KV Wire section: Copper:120 2000mm² aluminum:150 2000m² Max cable weight:35kg/m Max diameter:¢130mm Pipe-laying form: Vertical convert Nitrogen: Pressure:2.0 2.5MPa Purity:99.5% Consumption: 0.4 8m³/h (standard atmospheric pressure) sedsd Cooling water: pressure:0.2 0.6MPa Circulation 25 m³/h Compressed air: Pressure0.6 0.8MPa Normal dosage 0.8 m³/h Installed capacity:1200KVA Tape Caterpillar: 1.The traction system, It has four shifts for gear machinery such as 5.36,9.67, 31.6 . The Line speed is 0 30m/min, and 11kw for DC driver. Gearbox with four shifts, adopt Britain Olou 590 Equipment. Parameter: Wheel diameter:2m Effective clamping length:3m Max traction:30KN Max diameter of pulled cable:¢100mm Line speed:0 30m/min DC driver:11kW.1500rpm
